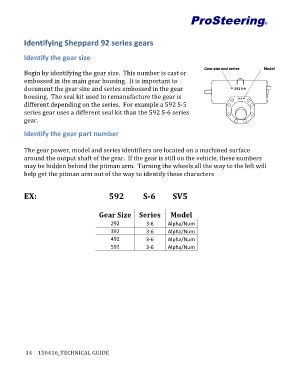

ProSteering®
Identifying
Sheppard
92
series
gears
Identify
the
gear
size
Begin
by
identifying
the
gear
size.
This
number
is
cast
or
embossed
in
the
main
gear
housing.
It
is
important
to
document
the
gear
size
and
series
embossed
in
the
gear
housing.
The
seal
kit
used
to
remanufacture
the
gear
is
different
depending
on
the
series.
For
example
a
592
S-‐5
series
gear
uses
a
different
seal
kit
than
the
592
S-‐6
series
gear.
Identify
the
gear
part
number
The
gear
power,
model
and
series
identifiers
are
located
on
a
machined
surface
around
the
output
shaft
of
the
gear.
If
the
gear
is
still
on
the
vehicle,
these
numbers
may
be
hidden
behind
the
pitman
arm.
Turning
the
wheels
all
the
way
to
the
left
will
help
get
the
pitman
arm
out
of
the
way
to
identify
these
characters
EX:
592
S-‐6
SV5
Gear
Size
Series
Model
292
3-‐6
Alpha/Num
392
3-‐6
Alpha/Num
492
3-‐6
Alpha/Num
592
3-‐6
Alpha/Num
